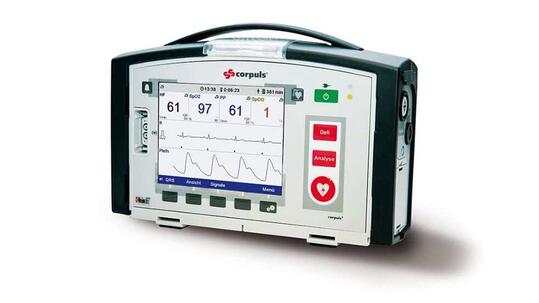

corpuls1

Handy, small and versatile

Small, light and compact but with the power of its big brother corpuls3. The corpuls1 was specially developed for the requirements of the fire brigade, first responders, in transport ambulances, doctors' offices and in disaster control. An extremely compact but full-fledged defibrillator/patient monitor that is always used when size does matter.

System

Monitoring

Up to 3 curves and 4 vital parameters at a glance on the 5.7" display. The same intuitive user interface as that of the corpuls3 ensures easy operation. Always in view: ECG, heart frequency and pulse oximetry.

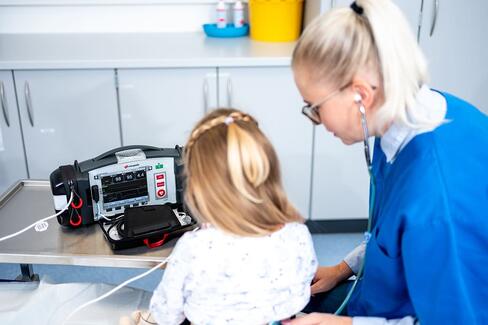

corpuls1 patient monitoring

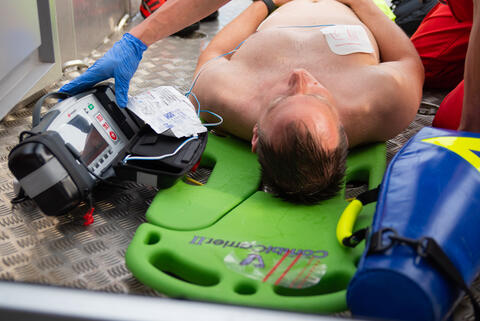

Reanimation

Depending on the application, you can use the corpuls1 as an automated external defibrillator (AED) or as a manual defibrillator.

corpuls1 resuscitation

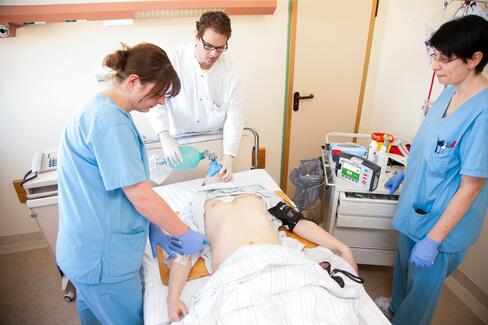

Pacemaker

The corpuls1 optionally features an integrated defibrillator with FIX/DEMAND modi for the treatment of arrhythmia.

corpuls1 pacer at the clinic

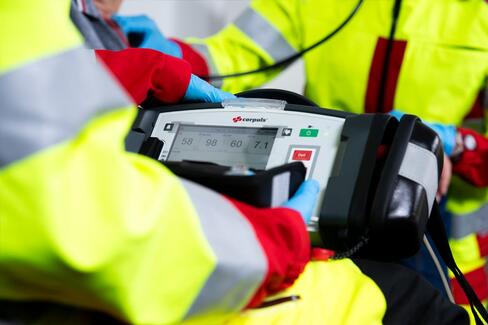

PULSE OXIMETRY

The integrated pulse oximeter (optional) allows monitoring of the oxygen saturation, pulse frequency and plethysmogram.

corpuls1 pulse oximetry

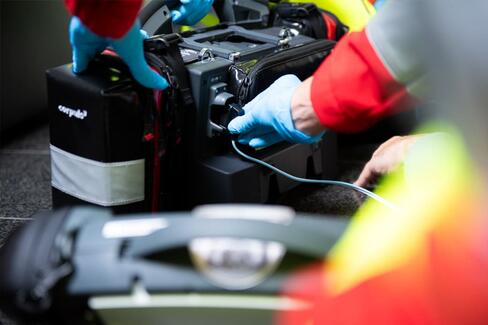

Full compatibility

Seconds count when responding to an emergency call. This is why we made sure that the transfer of the patient from the first responder to the emergency service for further treatment takes place as fast and smooth as possible. Just like with all corpuls defibrillators, the electrodes, sensors and cables of the corpuls1 can also be used with the corpuls3.

corpuls1 First responder

SPCO measurement

Not only the patient's life is at stake during an emergency call - the rescuers themselves must also be protected. This is why the corpuls1 is optimally equipped with SpCO measurement. Possible carbon monoxide poisoning can be easily detected at an early stage, for example in fire fighters after a fire fight.

corpuls1 spot measurement SpCO

Specifications

corpuls1

GENERAL SPECIFICATIONS

  • Dust and water jet protected according to IP55
  • Vibration and impact-tested according to DIN EN 1789
  • Alarm indicator, loudspeaker
  • Voice recording
  • Lithium-ion battery
  • 12 V DC power supply, 100 to 250 V AC with mains adapter
  • Data management via SD® memory card

Weight
2.2 kg
Basic equipment incl. battery

Operating temperatures
-20 °C to +55 °C
Basic functions: ECG monitoring, defibrillation

Dimensions
17 cm (L) × 26 cm (W) × 7 cm (D)

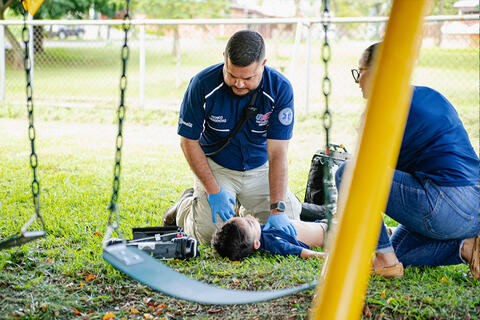

DEFIBRILLATOR/PACEMAKER

  • Automated external defibrillator (AED)
  • Manual defibrillator
  • Cardio version
  • Pacemaker with 2 modes (FIX, DEMAND) (optional)

corpuls1 defibrillator / pacemaker

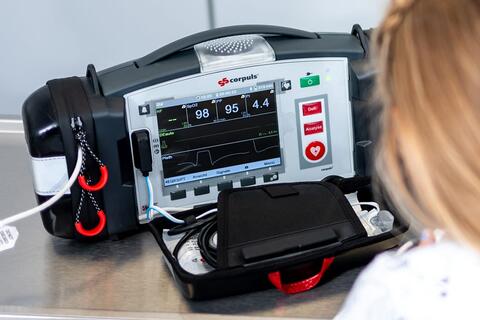

PATIENT MONITORING SYSTEM

  • 5.7" colour display, backlit
  • Display of up to 3 curves and up to 4 vital parameters
  • 6-channel ECG
  • Masimo® Rainbow® SET for SpO2, PP, PI, SpCO, SpMet, and SpHb (optional)

corpuls1 patient monitoring system

Concept

Sophisticated energy management

The powerful lithium-ion battery reliably supplies the corpuls1 with the required energy – for a very long time and even at -20°C. The remaining battery time is always indicated on the display.

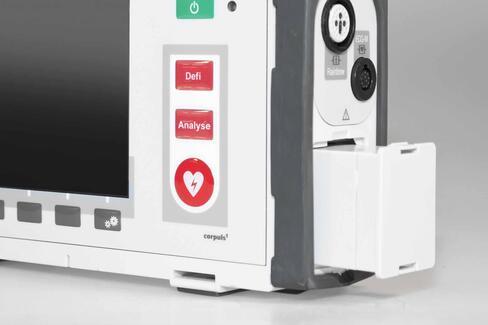

corpuls1 energy management

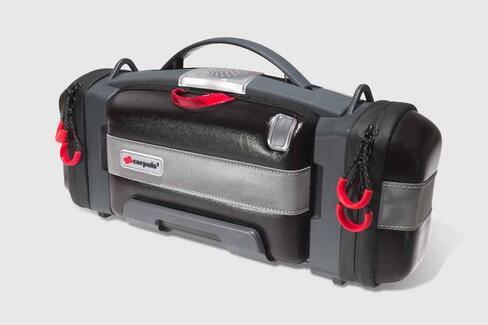

Sturdy bags

The cables, sensors and accessories of the corpuls1 are stored safely and ready at hand in the side bags. The cables do not have to be connected and disconnected for use because they are already connected in the bags. The corPatch therapy electrodes that are connected ready for use are located in the front bag with its magnetic lock.

corpuls1 stable bags

Compatibility with corpuls3

  • Batteries, sensors, corPatch electrodes and cables are identical for fast transfer of patients
  • The uniform user interface for corpuls1 and corpuls3 allows intuitive operation
  • Evaluations are possible in corpuls.web REVIEW for both systems

corpuls1 compatibility with corpuls3

Emergency backpack

One for everything in the case of an emergency

With the new emergency backpacks in two sizes, you are well equipped for any situation. A charging mount for the corpuls1 is integrated in the backpack. The power is supplied via the external MagCode® magnet plug.

Emergency backpack BLS (basic life support)

corpuls1 Emergency Backpack BLS

The smaller backpack provides space for basic medical equipment including the corpuls1. It is therefore ideally suited for first treatment in doctors' offices, hospitals or, for example, for house calls by the medical services.

Emergency backpack ALS (advanced life support)

corpuls1 Emergency Backpack ALS

The extended design of the emergency backpack features an additional module bag. This makes the backpack the ideal companion for resident physicians, in-hospital reanimation teams, first aiders at the workplace and first responder units.
